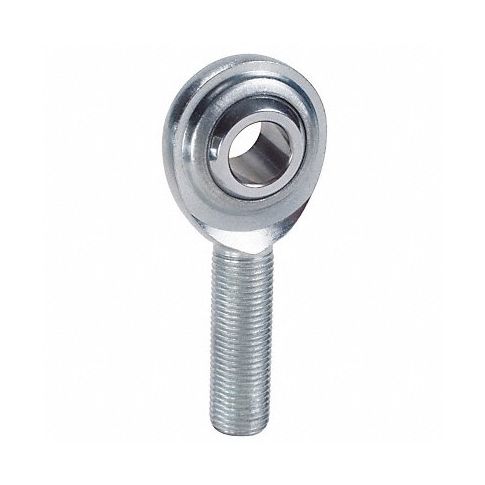

Male Rod End LH 6 mm Bore M6-1 MPN:MCML6
Introducing QA1's Male Rod End LH 6 mm Bore M6-1, a durable and reliable component perfect for pivoting in industrial applications to compensate for misalignment. This economical product features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and a sturdy carbon steel body that enhances its performance in harsh environments. With a left-hand threaded design, this versatile rod end is suitable for various industries, including machinery, vehicle manufacturing, and robotics. Its sleek 1.0 M6 x 1.0 thread size ensures easy installation and precise adjustments. Boasting numerous benefits such as smooth operation, durability, and cost-effectiveness, QA1's Male Rod End LH is an ideal choice for improving the functionality of your industrial machinery or equipment.
Top product features:
- Precision-ground, chrome-plated hardened 52100 steel spherical ball bearing Ensures smooth operation and longevity
- Sturdy carbon steel body Enhances durability in harsh environments
- Left-hand threaded design Versatile and suitable for various applications
Top product applications:
- Machinery Use in industrial machines to pivot or adjust for misalignment
- Vehicle Manufacturing Application in vehicle suspension systems
- Robotics Used in robotic joints or movement systems
Technical Specifications
- Item Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size M6 x 1.0
- Inside Dia. 6/6.065mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M6 x 1.0
- Dimension AA 6/6.065mm
- Dimension E 19 mm
- Dimension G 36 mm
- Dimension H 22 mm
- Dimension J 45.5 mm
- Dimension N 9 mm
- Max. Angular Misalignment 23 Degrees
- Static Radial Load 7,296 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCML6
- MPN: MCML6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
