Male Rod End RH 6 mm Bore M6-1 MPN:MCMR6
SKU
226-CXO-39N439

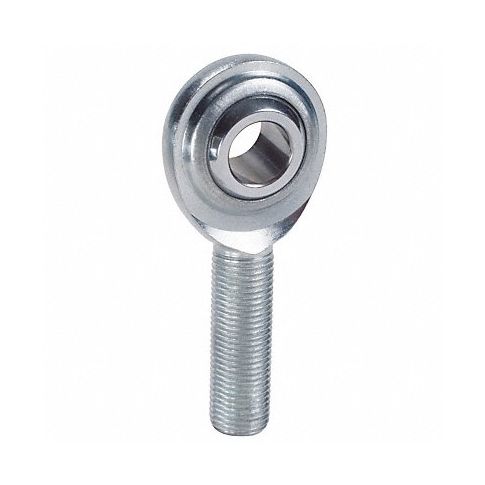

Male Rod End RH 6 mm Bore M6-1
This male rod end bearing, with a bore size of 6mm and an M6-1 threaded bushing, is designed for robust power transmission applications. Constructed from high quality chrome steel, this component boasts excellent strength, corrosion resistance, and wearability. The lightweight design of this rod end ensures easy installation and efficient operation, while also providing reliable motion control and flexibility. Used in a wide range of industries including automotive, machinery, and robotics, this male rod end guarantees smooth performance and durability with its threaded bushing design that allows for angle adjustments whilst maintaining rigidity.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size M6 x 1.0
- Inside Dia. 6/6.065mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M6 x 1.0
- Dimension AA 6/6.065mm
- Dimension E 19 mm
- Dimension G 36 mm
- Dimension H 22 mm
- Dimension J 45.5 mm
- Dimension N 9 mm
- Max. Angular Misalignment 23 Degrees
- Static Radial Load 7,296 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCMR6
- MPN: MCMR6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
