Female Rod End LH 8 mm Bore M8-1.25 MPN:MCFL8
SKU
226-CXO-39N428

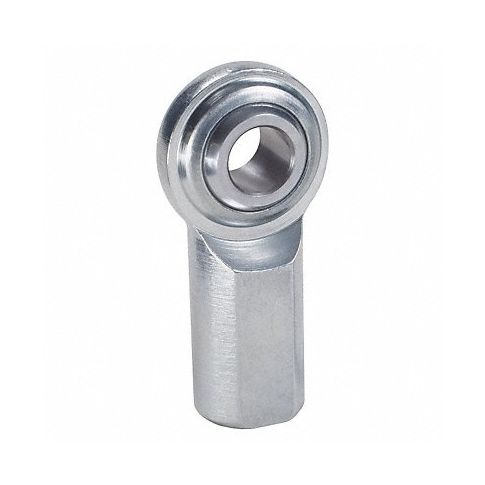

Female Rod End LH 8 mm Bore M8-1.25
This female rod end comes equipped with an 8mm diameter bore which allows for heavy loading capacity enabling it to provide exceptional stability under high performance applications across industries such as automotive, agriculture or construction giving professionals reliability all throughout! Additionally, its M8-1.25 left hand threads threaded mounting feature ensures quick set up alongside seamless integration for numerous assemblies while eliminating play between mating components, guaranteeing precision over prolonged usage periods, perfect pick to keep power tools or handheld machinery in check.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size M8 x 1.25
- Inside Dia. 8/8.065mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M8 x 1.25
- Dimension AA 8/8.065mm
- Dimension E 22.25 mm
- Dimension G 36 mm
- Dimension H 17 mm
- Dimension J 47.125 mm
- Dimension N 12 mm
- Max. Angular Misalignment 28 Degrees
- Static Radial Load 15,190 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCFL8
- MPN: MCFL8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
