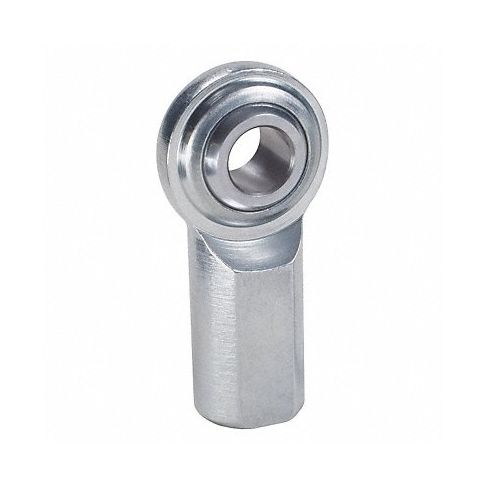

Female Rod End LH 5 mm Bore M5-0.08 MPN:MCFL5

This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.

Technical Specifications

• Item Rod End
• Type Female Plain
• Ball 52100 Steel Spherical
• Thread Left Hand
• Thread Size M5 x 0.8
• Inside Dia. 5/5.065mm
• Bearings 52100 Steel Spherical Ball
• Housing Low Carbon
• Construction Follows SAE Specification J1120
• Dimension A M5 x 0.8
• Dimension AA 5/5.065mm
• Dimension E 16 mm
• Dimension G 27 mm
• Dimension H 14 mm
• Dimension J 35 mm
• Dimension N 8 mm
• Max. Angular Misalignment 22 Degrees
• Static Radial Load 8,247 N

Manufacturer Details

• Manufacturer: QA1
• Condensed Mfg Number: MCFL5
• MPN: MCFL5

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483308055
• GDS Category Name: Spherical Rod Ends
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171508
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 08
• UNSPSC Commodity Name: Rod end bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
