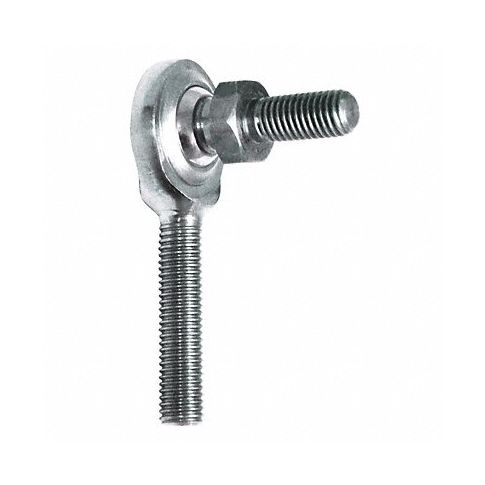

Male Rod End RH 7/16 in Bore 7/16 -20 MPN:GMR7TS
Male Rod End RH 7/16 in Bore 7/16 -20
The Male Rod End RH 7/16 in Bore 7/16 -20 is a high-performance power transmission component used in various industries such as automotive, industrial equipment, and aerospace. It features an inner housing thread of -20UNC with an outer thread of 7/16-20 UNC for smooth operation. The precision-fit chrome steel balls provide high load capacity while the zinc-plated finish ensures corrosion resistance. This versatile component is ideal for use in hydraulic cylinders, pneumatic pistons, rotational mounts, and other applications requiring precise power transmission.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 7/16"-20
- Stud Length 1.062 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension B 0.688 in
- Dimension C 1.062 in
- Dimension E 1.125 in
- Dimension G 2.125 in
- Dimension H 1.375 in
- Dimension J 2.688 in
- Max. Angular Misalignment 21 Degrees
- Static Radial Load 5,689 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GMR7TS
- MPN: GMR7TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
