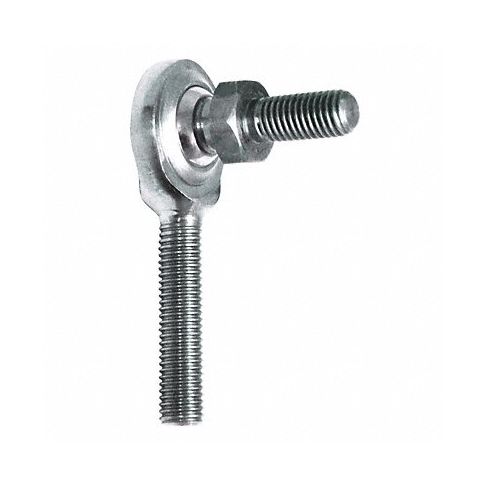

Male Rod End LH 3/8 in Bore 3/8 -24 MPN:GML6TS
Male Rod End LH 3/8 in Bore 3/8 -24
Male rod ends deliver exceptional quality, strength, and precision with a high-strength left hand threaded design which maintains accuracy while offering a durable connection for attachment components. Constructed from heat-treated alloy steel suitable for heavy-duty operation the Male rod end offers reliability in industries such as automotive, aerospace or construction, ensuring precision performance meeting industry compliance thus enhancing machinery lifespan while reducing cost over time. The versatile component provides a long service life, and cost savings by delivering high-quality performance while minimizing downtime due to breakage hence meeting the need for power transmission and bearings in industrial applications.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Stud Length 0.906 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension B 0.656 in
- Dimension C 0.906 in
- Dimension E 1.0 in
- Dimension G 1.938 in
- Dimension H 1.25 in
- Dimension J 2.438 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 4,527 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GML6TS
- MPN: GML6TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
