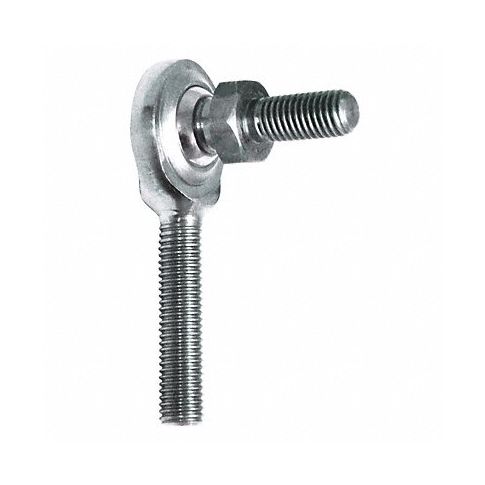

Male Rod End LH 3/16 in Bore #10-32 MPN:GML3TS
Male Rod End LH 3/16 in Bore #10-32
The Male Rod End LH 3/16 is a crucial component for secure and sturdy connections that withstand heavy pressure. Constructed from durable metal, it has a left-handed thread of 3/16 and a #10-32 standard screw size suitable for spherical rod ends. With its sturdy construction and adaptability, this part is an essential element in spherical rod ends that require tight and secure connections to prevent accidents or downtime.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size #10-32
- Stud Length 0.5 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension B 0.5 in
- Dimension C 0.5 in
- Dimension E 0.625 in
- Dimension G 1.25 in
- Dimension H 0.75 in
- Dimension J 1.563 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 1,190 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GML3TS
- MPN: GML3TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
