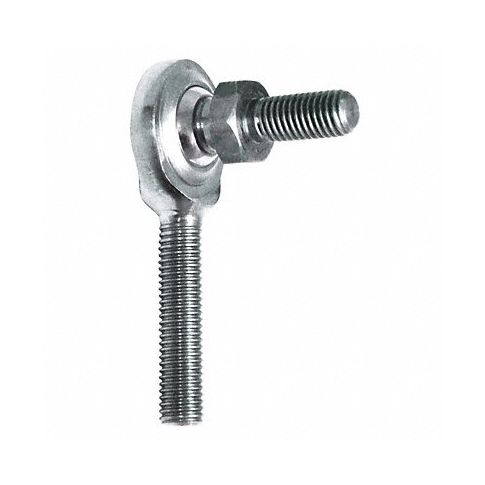

Male Rod End RH 3/16 in Bore #10-32 MPN:GMR3TS
Male Rod End RH 3/16 in Bore #10-32
Introducing our durable Rod End PTFE Race for sale - the ideal component for high load capacity ball transfer system designs in industries requiring precision movement solutions. Made from stainless steel to ensure longevity and constructed to support pivoting in the housing, it is perfect for heavy duty applications that demand robust performance. Its #10-32 thread size allows for simple installation, making it an exceptional value. Trust QA1 for dependable, top of the line products designed specifically for your needs!
Top product features:
- Stainless steel construction for durability in demanding applications.
- Pivoting in the housing to compensate for misalignment.
- 52100 steel ball bearing construction for superior load capacity.
Top product applications:
- Industrial machinery that requires pivoting movements to compensate for misalignment.
- Assembly lines where spherical bearings provide smooth movement and reduced friction.
- Heavy equipment that needs durable and sturdy components to endure demanding conditions.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size #10-32
- Stud Length 0.5 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension B 0.5 in
- Dimension C 0.5 in
- Dimension E 0.625 in
- Dimension G 1.25 in
- Dimension H 0.75 in
- Dimension J 1.563 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 1,190 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GMR3TS
- MPN: GMR3TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
