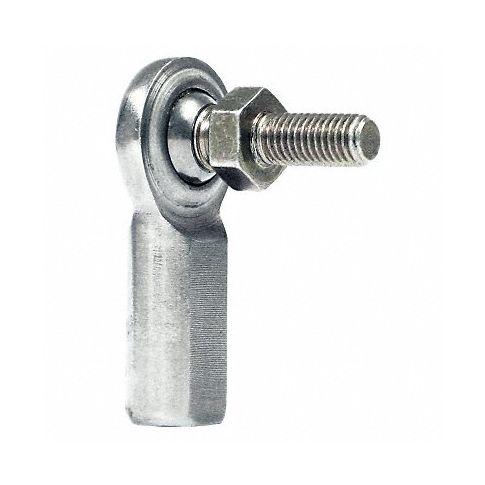

Female Rod End RH 3/8 in Bore 3/8 -24 MPN:GFR6TS
The Female Rod End RH 3/8 in Bore 3/8 -24 from QA1 is an exceptional spherical rod end designed for industrial applications where pivoting in a housing is required to compensate for misalignment. It features 52100 steel ball bearing construction and carbon steel housing for durability, making it suitable for demanding use. This female studded rod end with right-hand threading offers excellent resistance to wear and tear while providing smooth, low-friction movement. Its 3/8 inch bore size makes it compatible with various shafts and attachments, and its versatile design is perfect for a wide range of industries, including automotive, agriculture, construction, and manufacturing. Invest in the QA1 Female Rod End RH 3/8 in Bore 3/8 -24 today and experience exceptional performance and reliability in your precision applications.
Top product features:
- 52100 steel ball bearing construction increases durability and performance in demanding applications.
- Carbon steel housing provides additional strength and longevity to the rod end.
- Pivoting ability allows for movement and compensation for misalignment, making it versatile for various industrial applications.
Top product applications:
- Industrial automation and machinery used in robots, cranes, and other automated systems that require smooth pivoting movement.
- Material handling equipment used in conveyor systems or lifting platforms to allow for misalignment compensation.
- Agricultural machinery used in farm tractors, harvesters or planting equipment where precise movement is necessary.
Technical Specifications
- Item PTFE Race Rod End
- Type Female Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 3/8"-24
- Stud Length 0.906 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension B 0.656 in
- Dimension C 0.906 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.812 in
- Dimension J 2.125 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 4,527 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFR6TS
- MPN: GFR6TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on March 17, 2025 5:30am UTC Category: Bearings
