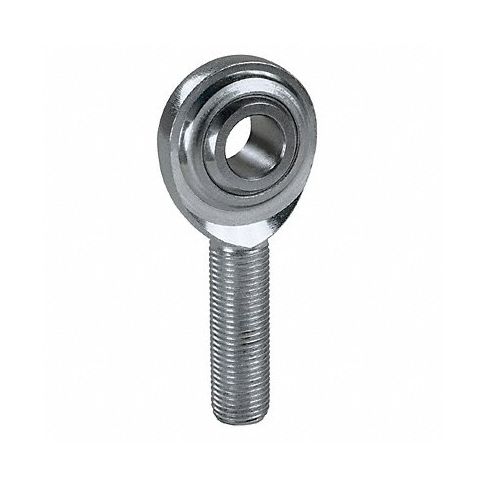

Male Rod End RH 7/16 in Bore 7/16 -20 MPN:GMR7T
SKU
226-CXO-20G048
Male Rod End RH 7/16 in Bore 7/16 -20
The Male Rod End RH 7/16 in Bore 7/16 -20 is a high-quality power transmission component designed for precision applications such as automotive steering, suspension, and control systems. Made of durable chrome steel, it features an inner housing thread of -20UNC with an outer thread of 7/16-20 UNC to ensure smooth operation. Precision-fit chrome steel balls provide high load capacity and durability while the zinc-plated finish offers corrosion resistance. This versatile rod end is also used in hydraulic cylinders, pneumatic pistons, and rotational mounts for industrial equipment. Overall, the Male Rod End RH 7/16 in Bore 7/16 -20 is a reliable choice for power transmission applications requiring precision, strength, and durability.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 7/16"-20
- Inside Dia. 0.4375/0.4395 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension AA 0.4375/0.4395 in
- Dimension E 1.125 in
- Dimension G 2.125 in
- Dimension H 1.375 in
- Dimension J 2.688 in
- Dimension N 0.562 in
- Max. Angular Misalignment 21 Degrees
- Static Radial Load 5,689 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GMR7T
- MPN: GMR7T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:39am UTC
Category: Bearings
