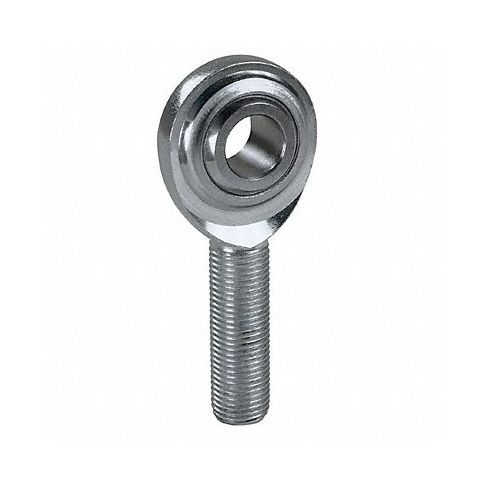

Male Rod End LH 3/8 in Bore 3/8 -24 MPN:GML6T
SKU
226-CXO-20G047
Male Rod End LH 3/8 in Bore 3/8 -24
The Male rod end delivers strength, hardness, and quality performance with a left hand threaded design that maintains accuracy while delivering a high-strength connection to attachment components. This versatile component is constructed of heat-treated alloy steel suitable for heavy-duty usage while maintaining precision during operation in industries such as automotive, aerospace or construction. The Male rod end promotes quality performance with reliability and precision while meeting industry compliance hence enhancing the life span of machinery thus reducing maintenance cost over time.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.938 in
- Dimension H 1.25 in
- Dimension J 2.438 in
- Dimension N 0.5 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 4,527 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GML6T
- MPN: GML6T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
