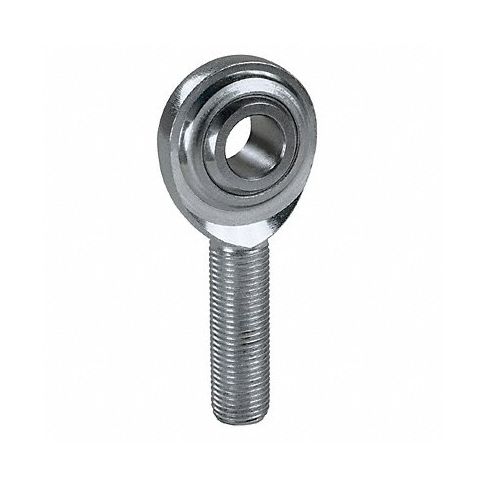

Male Rod End LH 5/16 in Bore 5/16 -24 MPN:GML5T
The Male Rod end LH with a 5/16 bore and thread size of 5/16-24 UNF is specifically designed for use in hydraulic systems, automotive components or any heavy-duty application that requires a secure and tight fit. Its construction from high strength materials ensures the rod end can withstand the pressure exerted during use while providing stability for its application. Moreover, the left-hand thread prevents loosening due to vibrations which ensures its effectiveness in transmitting force. Due to these features it's sought after by industries such as machinery manufacturers, heavy equipment operations, automotive mechanics and hydraulic systems makers for providing stability in motion or maintaining structural integrity with less maintenance needs.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size 5/16"-24
- Inside Dia. 0.3125/0.3145 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension AA 0.3125/0.3145 in
- Dimension E 0.875 in
- Dimension G 1.875 in
- Dimension H 1.25 in
- Dimension J 2.313 in
- Dimension N 0.437 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 3,278 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GML5T
- MPN: GML5T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
