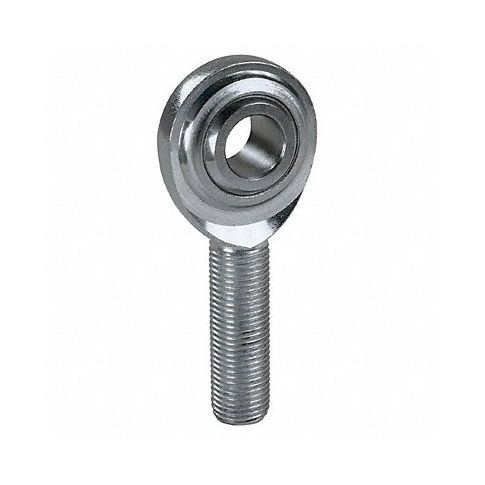

Male Rod End RH 5/16 in Bore 5/16 -24 MPN:GMR5T
Male Rod End RH 5/16 in Bore 5/16 -24 offers numerous advantages for precise movement and control in power tools, accessories, CNC machines, hydraulic, and pneumatic cylinders across various industries. It features compatibility with standard hardware components and secure threading, while its right-hand orientation allows flexibility in different configurations. Moreover, the product's robust construction guarantees reliability even under heavy loads. Ideal for professional mechanics, machinists, engineers working with power tools and accessories, as well as manufacturers of hydraulic and pneumatic cylinders, this component is an essential asset in aerospace, automotive, construction and other industries requiring precision control. With its specifications, the Male Rod End ensures smooth and efficient operations while minimizing disassembly risks.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 5/16"-24
- Inside Dia. 0.3125/0.3145 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension AA 0.3125/0.3145 in
- Dimension E 0.875 in
- Dimension G 1.875 in
- Dimension H 1.25 in
- Dimension J 2.313 in
- Dimension N 0.437 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 3,278 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GMR5T
- MPN: GMR5T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
