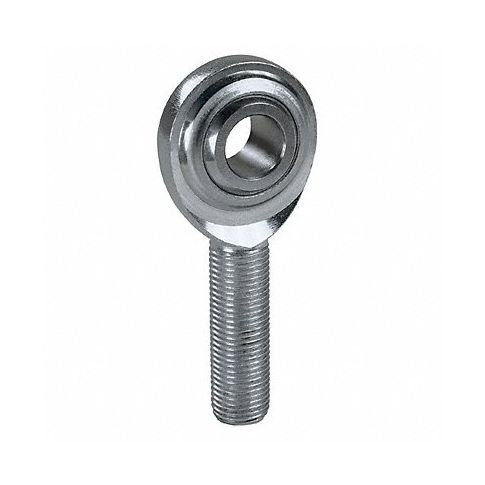

Male Rod End RH 1/4 in Bore 1/4 -28 MPN:GMR4T
Male Rod End RH 1/4 in Bore 1/4 -28
QA1's Male Rod End RH 1/4 in Bore 1/4 -28 is an excellent solution for pivoting in industrial applications where misalignment needs to be compensated for. Made from durable steel materials, this rod end provides superior performance and functionality. With a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body, this product can withstand the toughest environments. Bonded with PTFE fabric race for excellent lubrication properties, this rod end is suitable for low to moderate load applications where lubricating the parts is not desirable. Use it in various automotive and industrial equipment to achieve smooth, durable operation.
Top product features:
- Precision-ground, hardened 440C stainless steel ball provides high durability and reliability
- Bonded PTFE fabric race offers smooth operation and eliminates need for lubrication
- Made from corrosion-resistant 300 Series stainless steel for long-lasting performance in tough environments
Top product applications:
- Automotive: Used in suspension systems for smooth and reliable movement
- Industrial Equipment: Utilized as pivot points for robotic arms in assembly lines
- Aerospace: Employed in landing gear systems to compensate for shocks and vibrations
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 1/4"-28
- Inside Dia. 0.250/0.252 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension AA 0.250/0.252 in
- Dimension E 0.75 in
- Dimension G 1.562 in
- Dimension H 1.0 in
- Dimension J 1.937 in
- Dimension N 0.375 in
- Max. Angular Misalignment 27 Degrees
- Static Radial Load 2,165 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GMR4T
- MPN: GMR4T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on March 21, 2025 5:30am UTC
