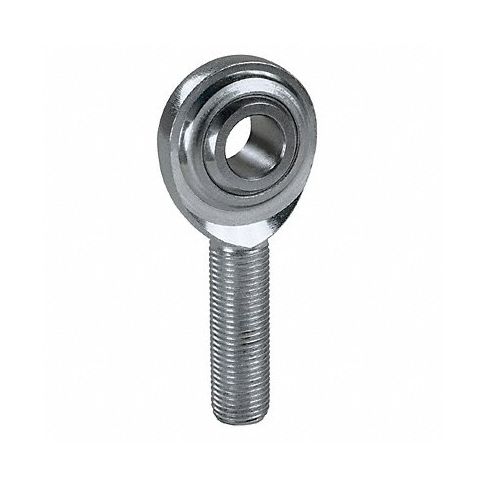

Male Rod End RH 3/16 in Bore #10-32 MPN:GMR3T
Male Rod End RH 3/16 in Bore #10-32
The PTFE Race Rod End from QA1 is designed for use in industrial applications requiring low to moderate load capacities. With its precision-ground stainless steel ball and bonded PTFE fabric race, this rod end allows for pivoting within the housing, compensating for misalignment. The 440C stainless steel spherical ball is durable and corrosion-resistant, ensuring long-lasting performance. This product is suitable for use in applications where lubrication of parts is not desirable. With a right-hand thread and #10-32 thread size, the PTFE Race Rod End is a versatile solution for various industries requiring precise and reliable pivoting movements.
Top product features:
- High-quality PTFE fabric race for lowto moderate load applications where lubrication is not desirable
- Precision-ground 440C stainless steel ball ensures durability and corrosion resistance
- Bonded PTFE fabric race provides excellent pivoting within the housing, compensating for misalignment
Top product applications:
- Industrial machinery and equipment where alignment compensation is necessary
- Heavy-duty automotive applications that require high load capacity and corrosion resistance
- Aerospace and military systems for pivoting movements in harsh environments
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size #10-32
- Inside Dia. 0.189/0.191 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension AA 0.190/0.192 in
- Dimension E 0.625 in
- Dimension G 1.25 in
- Dimension H 0.75 in
- Dimension J 1.563 in
- Dimension N 0.312 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 1,190 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GMR3T
- MPN: GMR3T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:42am UTC
Category: Bearings
