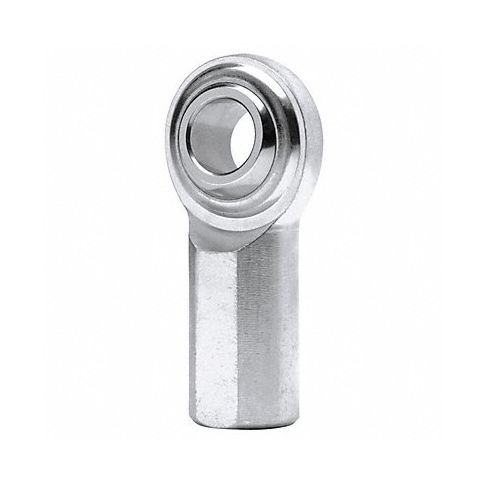

Female Rod End RH 1/2 in Bore 1/2 -20 MPN:GFR8T
Female Rod End RH 1/2 in Bore 1/2 -20
Introducing the QA1 Female Rod End RH 1/2 in Bore 1/2 -20, an ideal solution for pivoting applications where misalignment is a concern. This rod end features bonded PTFE fabric race and a precision-ground stainless steel ball to provide superior performance. Designed for low to moderate load applications where lubrication isn't necessary, this durable product ensures reliability in any industrial setting. Ideal for various industries including automotive, aerospace, and agriculture, this rod end is designed to withstand the toughest conditions while maintaining precision motion. Upgrade your pivoting applications today with the QA1 Female Rod End RH 1/2 in Bore 1/2 -20 for optimal performance.
Top product features:
- Bonded PTFE fabric race for superior performance
- Precision-ground stainless steel ball for accurate motion compensation
- Stainless steel body for durability and corrosion resistance
Top product applications:
- Industrial pivoting applications where misalignment is a concern
- Automotive and aerospace components requiring stainless steel construction and high precision
- Agricultural machinery for precise movement compensation
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 1/2"-20
- Inside Dia. 0.500/0.502 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/2"-20
- Dimension AA 0.500/0.502 in
- Dimension E 1.312 in
- Dimension G 2.125 in
- Dimension H 1.062 in
- Dimension J 2.781 in
- Dimension N 0.625 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 7,352 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFR8T
- MPN: GFR8T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:33am UTC
Category: Bearings
