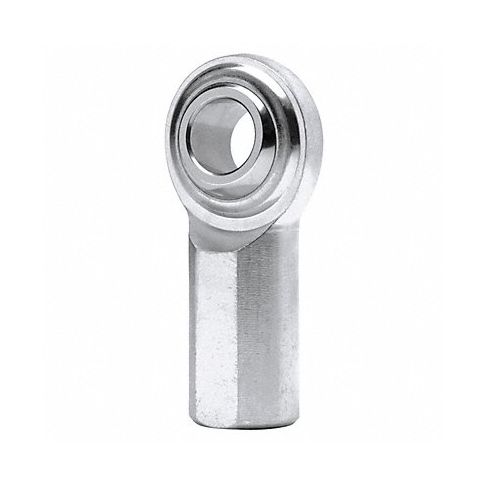

Female Rod End RH 7/16 in Bore 7/16 -20 MPN:GFR7T
Female Rod End RH 7/16 in Bore 7/16 -20
The QA1 Female Rod End RH 7/16 in Bore 7/16 -20 is an excellent choice for industrial pivoting applications where precise alignment is crucial. This high-quality steel spherical rod end comes with a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body bonded with PTFE fabric race for durability. Its low-to-moderate load capacity makes it perfect for applications where lubrication is not an option. The Female Plain design ensures seamless installation and its Right Hand Thread adds to its versatility. This power transmission component is ideal for various industries that require reliable pivoting in harsh environments such as automotive, construction, and mining equipment.
Top product features:
- Precision-ground ball for accurate pivoting
- Bonded PTFE fabric race for durability and low friction
- Stainless steel body for corrosion resistance and strength in industrial applications Power Transmission
Top product applications:
- Mechanical machinery requiring pivoting motion and low friction movement
- Agricultural equipment requiring precise motion in harsh environments
- Medical devices requiring stainless steel components for durability and corrosion resistance Power Transmission
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 7/16"-20
- Inside Dia. 0.4375/0.4395 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension AA 0.4375/0.4395 in
- Dimension E 1.125 in
- Dimension G 1.812 in
- Dimension H 0.937 in
- Dimension J 2.375 in
- Dimension N 0.562 in
- Max. Angular Misalignment 21 Degrees
- Static Radial Load 5,689 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFR7T
- MPN: GFR7T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
