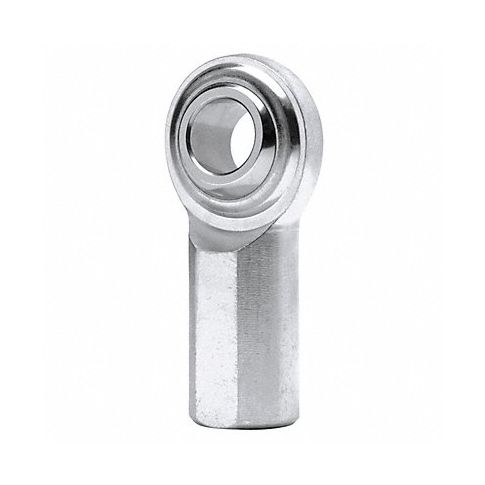

Female Rod End LH 3/8 in Bore 3/8 -24 MPN:GFL6T
SKU
226-CXO-20G031
Female Rod End LH 3/8 in Bore 3/8 -24
The female rod end's sturdy construction is well suited for demanding applications in the automotive and aerospace industries where reliability and precision are essential. Its lightweight design reduces the stress on machinery components and eliminates wobbling, providing smooth movement while its locking thread ensures a secure connection. Its versatile 3/8 inch bore size can accommodate various shafts or rod diameters, while the -24 thread allows for easy attachment onto other hardware pieces.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.812 in
- Dimension J 2.125 in
- Dimension N 0.5 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 4,527 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFL6T
- MPN: GFL6T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:43am UTC
Category: Bearings
