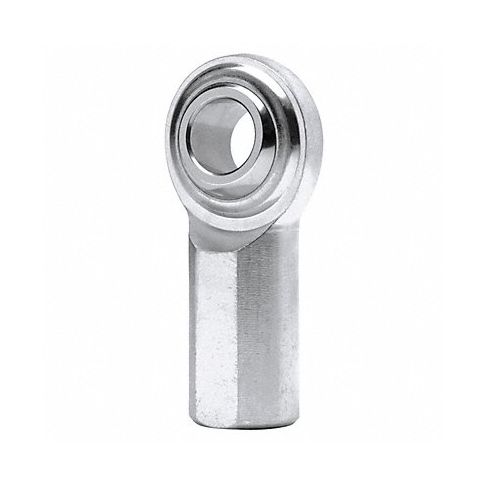

Female Rod End RH 3/8 in Bore 3/8 -24 MPN:GFR6T
SKU
226-CXO-20G030
Female Rod End RH 3/8 in Bore 3/8 -24
This female PTFE race rod end from QA1 is a high-quality, versatile product designed to meet the needs of industrial applications that require precise alignment compensation. Made from stainless steel with a bonded PTFE fabric race, this durable rod end provides low- to moderate load applications without requiring lubrication. Its innovative design allows for easy pivoting in the housing, ensuring smooth and efficient operation. With its many benefits including its precision-ground hardened ball and 300 series stainless steel body, this rod end is perfect for use in various industries where reliability and durability are essential.
Top product features:
- Precision-ground, hardened 440C stainless steel ball ensures smooth operation and durability.
- Bonded PTFE fabric race provides low friction, eliminating the need for lubrication in low to moderate load applications.
- Compatible with various industries, making it a versatile product that meets diverse needs.
Top product applications:
- Industrial machinery alignment compensation
- Robotics and automation components
- Aerospace and marine hardware
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.812 in
- Dimension J 2.125 in
- Dimension N 0.5 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 4,527 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFR6T
- MPN: GFR6T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
