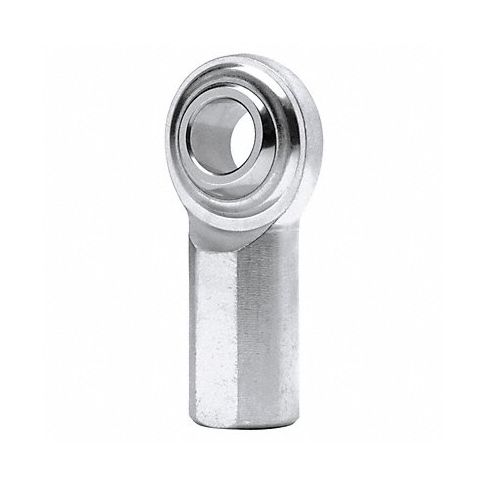

Female Rod End RH 1/4 in Bore 1/4 -28 MPN:GFR4T
The Ball End Mill: 0.375in Dia, 0.625in LOC, 2 Flute, Solid Carbide is an exceptional tool designed for superior cutting performance and precision in aerospace, automotive, medical and general machining industries. Its robust size allows for efficient finish work, polishing or deburring on large parts or intricate components. The solid carbide construction ensures durability while the two flutes efficiently evacuate chips for smooth cutting action. With its long length of cut and ability to handle heavy-duty material such as stainless steel, aluminum, titanium, and tool steel, it's perfect for precision machining operations that require high-quality finishes. Upgrade your tool collection with Ball End Mill: 0.375in Dia, 0.625in LOC, 2 Flute, Solid Carbide today!
Technical Specifications
- Item PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size 1/4"-28
- Inside Dia. 0.250/0.252 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension AA 0.250/0.252 in
- Dimension E 0.75 in
- Dimension G 1.312 in
- Dimension H 0.687 in
- Dimension J 1.687 in
- Dimension N 0.375 in
- Max. Angular Misalignment 27 Degrees
- Static Radial Load 2,165 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFR4T
- MPN: GFR4T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
