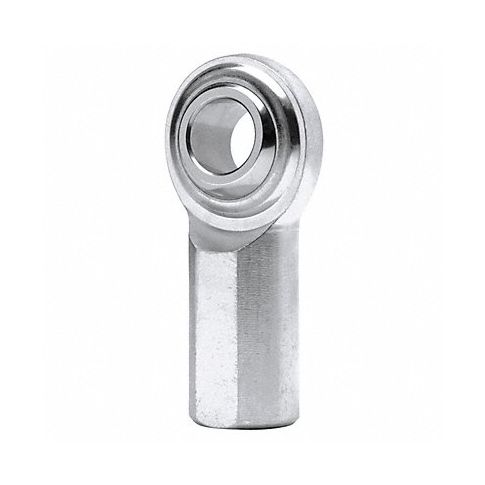

Female Rod End RH 3/16 in Bore #10-32 MPN:GFR3T
Female Rod End RH 3/16 in Bore #10-32
QA1 Female Rod End RH 3/16 in Bore #10-32 is a precision-engineered solution for industrial applications that require smooth, reliable motion in a compact design. Its 440C stainless steel ball ensures strength and durability while the PTFE fabric race offers low-friction operation. The right-hand thread design and female plain type make it easy to integrate into existing systems, while its ability to pivot in the housing compensates for misalignment issues. Perfect for use in a wide range of industries and applications, this rod end delivers superior performance where lubrication is not an option.
Top product features:
- Precision-ground hardened 440C stainless steel ball for superior strength and durability.
- Bonded PTFE fabric race for low-friction operation.
- Right-hand thread design for easy integration into existing systems.
Top product applications:
- Heavy-duty machinery and equipment that require smooth, stable movement in harsh environments.
- Manufacturing or production lines where precision alignment is critical for efficient operation.
- Robotics and automation systems where a compact pivot point with low friction is essential for accurate movements.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size #10-32
- Inside Dia. 0.189/0.191 in
- Bearings 440C Stainless Steel Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension AA 0.190/0.192 in
- Dimension E 0.625 in
- Dimension G 1.062 in
- Dimension H 0.5 in
- Dimension J 1.375 in
- Dimension N 0.312 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 1,190 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: GFR3T
- MPN: GFR3T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
