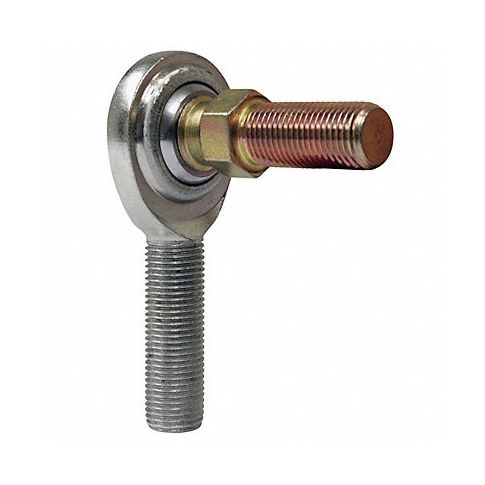

Male Rod End LH 1/2 in Bore 1/2 -20 MPN:CML8S
Introducing the QA1 Male Rod End LH 1/2 in Bore 1/2 -20 - a high-performance component designed to meet the demands of heavy-duty industrial applications. Featuring a steel spherical construction and 52100 steel ball bearing, this rod end provides superior durability and precision while pivoting in the housing to compensate for misalignment. The Male Studded design ensures easy installation and integration with your machinery, while the Left-Hand Threads offer flexibility and versatility. Whether you're in robotics, automation, or heavy equipment industries, the QA1 Male Rod End LH 1/2 in Bore 1/2 -20 is the perfect choice for ensuring smooth operations and maximizing productivity. Upgrade your machinery today with this top-of-the-line component from QA1!
Top product features:
- Steel spherical construction for superior durability and precision
- 52100 steel ball bearing for smooth operations
- Male Studded design for easy installation and integration
Top product applications:
- Robotics: for precise and smooth movements in robotic arms and joints
- Automation: for use in automated assembly lines and machinery to reduce friction and ensure accuracy
- Heavy Equipment: for use in heavy-duty vehicles and machinery to compensate for misalignment and increase durability
Technical Specifications
- Item Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 1/2"-20
- Stud Length 1.125 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/2"-20
- Dimension B 0.875 in
- Dimension C 1.125 in
- Dimension E 1.312 in
- Dimension G 2.438 in
- Dimension H 1.5 in
- Dimension J 3.094 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 10,046 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CML8S
- MPN: CML8S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
