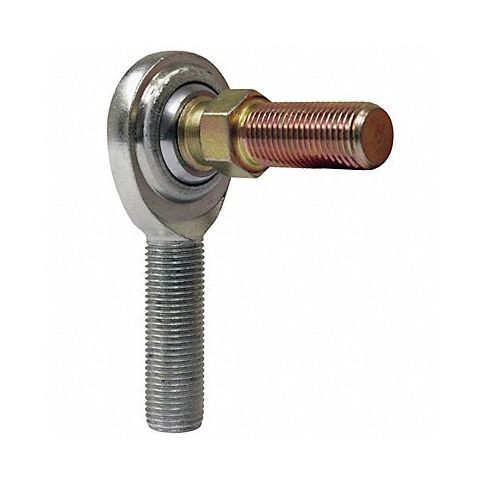

Male Rod End RH 7/16 in Bore 7/16 -20 MPN:CMR7S
SKU
226-CXO-20G016
Male Rod End RH 7/16 in Bore 7/16 -20
The Male Rod End RH 7/16 in Bore 7/16 -20 is commonly used in power transmission systems for automotive applications such as steering, suspension, and control arms. It is also popular among industrial equipment manufacturers who use this component to construct hydraulic cylinders, pneumatic pistons, and rotational mounts. Due to its high load capacity and precision-fit ball bearings, the Male Rod End RH 7/16 in Bore 7/16 -20 is a popular choice among power tool manufacturers for creating rotary and sliding motion in machinery, robotics, and heavy equipment.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 7/16"-20
- Stud Length 1.062 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension B 0.688 in
- Dimension C 1.062 in
- Dimension E 1.125 in
- Dimension G 2.125 in
- Dimension H 1.375 in
- Dimension J 2.688 in
- Max. Angular Misalignment 21 Degrees
- Static Radial Load 7,897 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CMR7S
- MPN: CMR7S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
