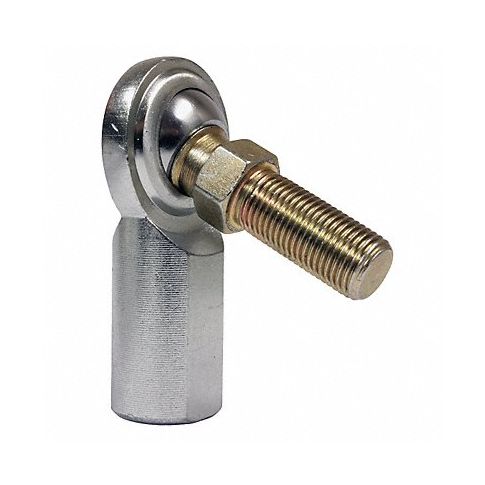

Female Rod End RH 3/8 in Bore 3/8 -24 MPN:CFR6S
Female Rod End RH 3/8 in Bore 3/8 -24
Female rod ends with a right-hand thread and 3/8 bore are essential components for various applications that require pivotal movement or angular adjustments. Their spherical shape allows for greater alignment tolerances, smooth operation, and self-lubrication even in high-load situations. Stainless steel construction ensures durability, resistance to corrosion, and compatibility with a wide range of materials. With their high load-carrying capacity and compact design, female rod ends are widely used in agriculture, construction, automotive, aerospace, and manufacturing industries where precision and reliability are essential.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 3/8"-24
- Stud Length 0.906 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension B 0.656 in
- Dimension C 0.906 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.812 in
- Dimension J 2.125 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 6,323 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFR6S
- MPN: CFR6S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
