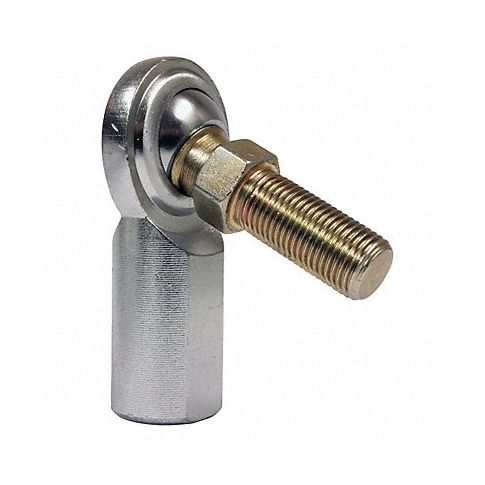

Female Rod End LH 5/16 in Bore 5/16 -24 MPN:CFL5S
Female Rod End LH 5/16 in Bore 5/16 -24 is an expertly crafted product designed to offer high strength and reliability for industrial use where loads need to be carried effectively. This spherical rod end excels due to its right-hand thread design, providing convenience when attaching components such as linkages, shafts, or clevis pins in various applications. Manufactured using heat-treated alloy steel and hardened to the point of chrome plating, it displays unparalleled durability by offering resistance to wear and corrosion. Being interchangeable and featuring a large selection of inserts for easy installation, Female Rod End LH 5/16 in Bore 5/16 -24 stands out as a go-to option across diverse industries such as agricultural, construction, mining or material handling machinery needing sturdy and long-lasting parts without compromising on precision.
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/16"-24
- Stud Length 0.687 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension B 0.532 in
- Dimension C 0.687 in
- Dimension E 0.875 in
- Dimension G 1.375 in
- Dimension H 0.687 in
- Dimension J 1.813 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 5,110 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL5S
- MPN: CFL5S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
