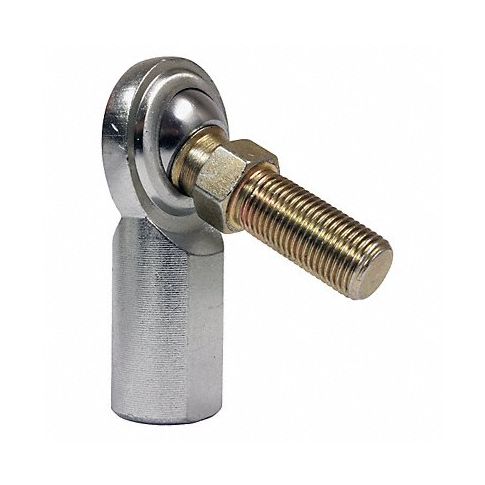

Female Rod End LH 3/16 in Bore #10-32 MPN:CFL3S
The QA1 Female Rod End LH 3/16 in Bore #10-32 is a high-quality ball bearing that delivers durability, precision, and reliability in demanding industrial applications. Designed to allow pivoting in the housing, this steel spherical rod end features a 52100 steel ball bearing construction and carbon steel housing, making it an ideal choice for use where misalignment compensation is required. With its female studded design, the QA1 Female Rod End offers versatility and can be easily integrated into a variety of systems for optimal performance. Ideal for use in automotive, agricultural, and construction machinery, this rod end provides superior load bearing capacity, smooth movement, and precise alignment, ensuring long-lasting performance in even the most demanding conditions.
Top product features:
- 52100 steel ball bearing construction for durability and precision
- Female studded design for versatility and easy integration
- Carbon steel housing for added strength and resistance to wear
Top product applications:
- Robotics and automation systems for precise motion control in manufacturing and assembly processes
- Agricultural machinery and implements for steering and guiding functions
- Mobile equipment such as lift trucks, cranes, and excavators for articulation and stabilization functions
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size #10-32
- Stud Length 0.5 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension B 0.5 in
- Dimension C 0.5 in
- Dimension E 0.625 in
- Dimension G 1.062 in
- Dimension H 0.5 in
- Dimension J 1.375 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 2,079 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL3S
- MPN: CFL3S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:34pm UTC Category: Bearings
