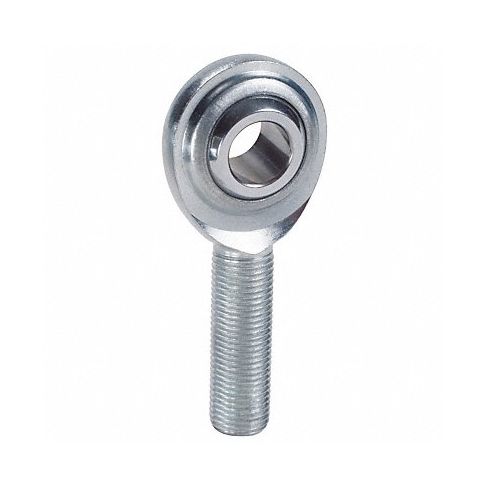

Male Rod End RH 5/8 in Bore 5/8 -18 MPN:CMR10
Male Rod End RH 5/8 in Bore 5/8 -18
Introducing QA1's Male Rod End RH 5/8 in Bore 5/8 -18 - an exceptional product designed to meet the needs of various industrial and automotive applications requiring precise pivoting. Made with a precision-ground, chrome-plated hardened steel ball bearing and a durable carbon steel body, this rod end ensures long-lasting performance even in harsh environments. Its male design allows for simple installation, while the right-hand thread adds to its versatility. With QA1's Male Rod End RH 5/8 in Bore 5/8 -18, you get superior strength and precision, perfect for various pivoting applications requiring accuracy and reliability. Upgrade your industrial or automotive setup with this top-performing rod end from QA1 today!
Top product features:
- Precision-ground, chrome-plated hardened 52100 steel spherical ball bearing for superior strength and accuracy.
- 1045 carbon steel body for increased durability in harsh environments.
- Male design for easy installation.
Top product applications:
- Industrial machinery and equipment requiring pivoting movement.
- Automotive suspension systems for better control and stability.
- Robotic arms for precision motion control in automated processes.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 5/8"-18
- Inside Dia. 0.625/0.627 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/8"-18
- Dimension AA 0.625/0.627 in
- Dimension E 1.5 in
- Dimension G 2.625 in
- Dimension H 1.625 in
- Dimension J 3.375 in
- Dimension N 0.75 in
- Max. Angular Misalignment 26 Degrees
- Static Radial Load 11,385 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CMR10
- MPN: CMR10
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:42am UTC
Category: Bearings
