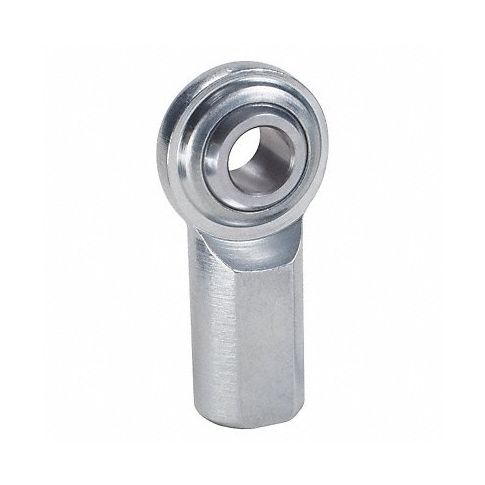

Female Rod End RH 7/16 in Bore 7/16 -20 MPN:CFR7
Female rod ends such as this 7/16 model find extensive use among power transmission applications due to their versatile design capable of accommodating various shaft sizes securely while supporting heavy loads up to 800 pounds. Such properties make it invaluable for precision positioning and adjustments on robotics arms, automotive suspensions systems or machinery that demand accurate control over movements; thus being an essential component within mechanical engineering sectors responsible for driving innovation in advanced automation, robotic systems as well as smart manufacturing technologies. Thus, professionals employ these rod ends across industries to optimize production efficiency levels by allowing seamless transitions between linked parts enabling faster cycle times resulting into higher throughput thus ultimately improving bottom lines for their organizations.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 7/16"-20
- Inside Dia. 0.4375/0.4395 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension AA 0.4375/0.4395 in
- Dimension E 1.125 in
- Dimension G 1.812 in
- Dimension H 0.937 in
- Dimension J 2.375 in
- Dimension N 0.562 in
- Max. Angular Misalignment 21 Degrees
- Static Radial Load 7,897 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFR7
- MPN: CFR7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
