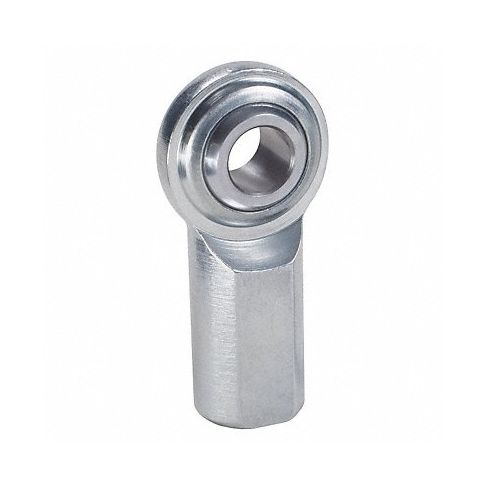

Female Rod End LH 5/16 in Bore 5/16 -24 MPN:CFL5
Female Rod End LH 5/16 in Bore 5/16 -24
Female Rod End LH 5/16 in Bore 5/16 -24 is perfect for power tools and accessories used in industrial applications where accuracy, durability, and reliability are essential. Manufactured from heat-treated alloy steel with a hardened chrome plating finish, this rod end ensures resistance to wear and rust making it ideal for heavy-duty use. Its versatile interchangeable inserts provide ease of installation suitable for industries that deal in material handling or construction machinery looking for smooth rotation operations while offering consistent results over time with minimal downtime reducing maintenance costs in the long run, proving cost-effective and reliable in the process.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/16"-24
- Inside Dia. 0.3125/0.3145 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension AA 0.3125/0.3145 in
- Dimension E 0.875 in
- Dimension G 1.375 in
- Dimension H 0.687 in
- Dimension J 1.813 in
- Dimension N 0.437 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 5,110 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL5
- MPN: CFL5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
