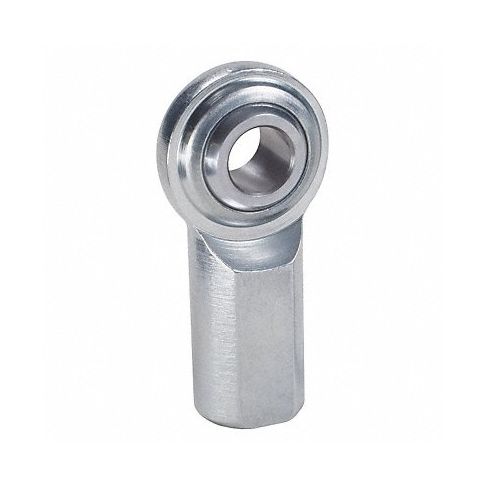

Female Rod End RH 5/16 in Bore 5/16 -24 MPN:CFR5
Female Rod End RH 5/16 in Bore 5/16 -24
The female rod end is an essential spherical rod end component commonly used to create pivot points or joints in machinery, automotive, aerospace and manufacturing industries among others. It features a right-hand threaded fitting with a 5/16 inch bore diameter allowing attachment of pins, bolts, shafts or studs providing an accurate fitting. Its zinc plating enhances corrosion resistance while ensuring smooth operation preventing scratches during use guaranteeing long lasting service life.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 5/16"-24
- Inside Dia. 0.3125/0.3145 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension AA 0.3125/0.3145 in
- Dimension E 0.875 in
- Dimension G 1.375 in
- Dimension H 0.687 in
- Dimension J 1.813 in
- Dimension N 0.437 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 5,110 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFR5
- MPN: CFR5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
