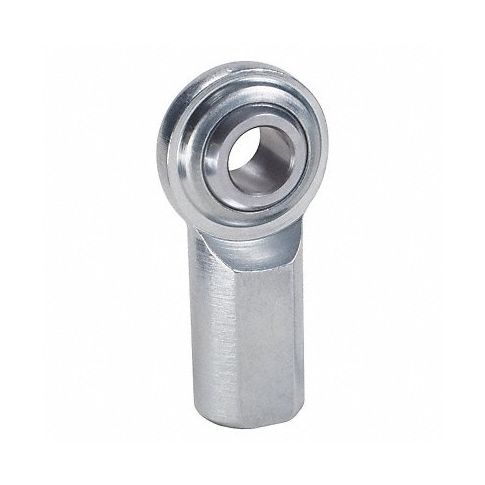

Female Rod End LH 3/16 in Bore #10-32 MPN:CFL3
Female Rod End LH 3/16 in Bore #10-32
The QA1 Female Rod End LH 3/16 in Bore #10-32 is a versatile component ideal for pivoting applications in harsh industrial environments. It features a precision-ground, hardened spherical ball bearing and durable carbon steel body to withstand wear and tear. This rod end provides exceptional accuracy and strength, allowing it to compensate for misalignment while maintaining smooth movement. With its left hand thread and 1045 construction, this product is ideal for various industries seeking reliable, precision movement in their pivoting assemblies.
Top product features:
- Precision-ground, chrome-plated hardened 52100 steel spherical ball bearing provides exceptional accuracy and smooth movement
- Durable carbon steel body promotes durability in harsh environments
- Left hand thread and 1045 construction ideal for various pivoting applications
Top product applications:
- Industrial machinery pivoting and compensation for misalignment
- Construction equipment movement control
- Transportation systems steering and suspension mechanisms
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size #10-32
- Inside Dia. 0.189/0.191 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension AA 0.190/0.192 in
- Dimension E 0.625 in
- Dimension G 1.062 in
- Dimension H 0.5 in
- Dimension J 1.375 in
- Dimension N 0.312 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 2,079 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL3
- MPN: CFL3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
