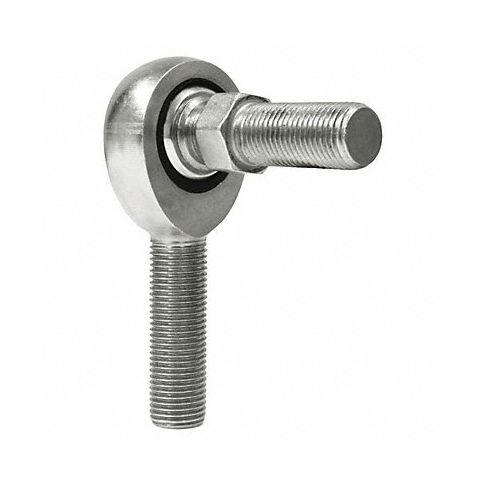

Male Rod End LH 7/16 in Bore 7/16 -20 MPN:NML7S
Male Rod End LH 7/16 in Bore 7/16 -20
The Male Rod End featuring left-hand thread design boasts precise accuracy allowing for smooth motion and steady load distribution on machines, gears or bolts while preventing any unwanted friction, wear & tear while its plain type construction make it perfect candidate in several industries ranging from automotive, hydraulics to industrial machinery environments with customers who value durability without costly breakage - making this rod end an essential component in their toolkits.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 7/16"-20
- Stud Length 1.062 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension B 0.688 in
- Dimension C 1.062 in
- Dimension E 1.125 in
- Dimension G 2.125 in
- Dimension H 1.375 in
- Dimension J 2.688 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 5,350 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML7S
- MPN: NML7S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
