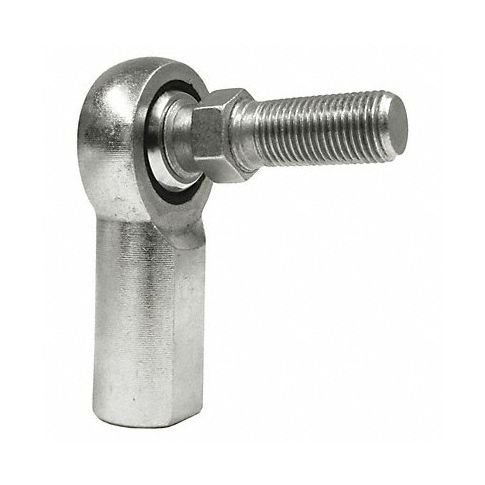

Female Rod End LH 5/8 in Bore 5/8 -18 MPN:NFL10S
Female Rod End LH 5/8 in Bore 5/8 -18 is known for its versatile spherical design that offers 360 continuous rotation, permitting freedom of movement while maintaining fixed-point contact which makes it indispensable across industries ranging from automotive suspension systems to agricultural or industrial robotics. The use of stainless steel material ensures corrosion resistance even when exposed to harsh environmental conditions thus preserving optimal performance over extended periods, and reducing replacement costs. This spherical rod end's ease of installation, coupled with its ability to bear high loads without binding, contributes significantly to its extensive utilization in numerous industries requiring reliable, accurate and sturdy connections for complex applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/8"-18
- Stud Length 1.5 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/8"-18
- Dimension B 1.0 in
- Dimension C 1.5 in
- Dimension E 1.5 in
- Dimension G 2.5 in
- Dimension H 1.5 in
- Dimension J 3.25 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 8,300 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFL10S
- MPN: NFL10S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
