Female Rod End RH 5/16 in Bore 5/16 -24 MPN:NFR5S
SKU
226-CXO-20F931

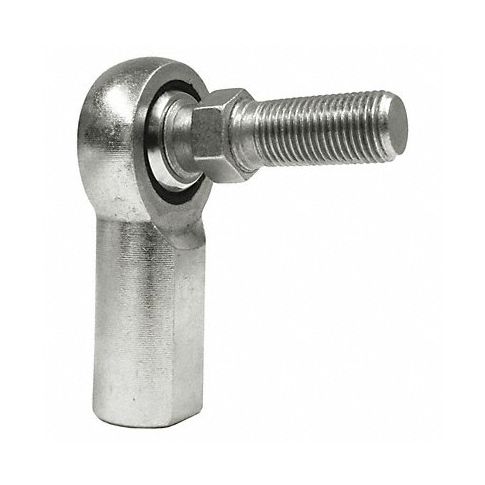

Female Rod End RH 5/16 in Bore 5/16 -24
The female rod end is a highly adaptable and robust component primarily used as a connecting link between two pivot points or joints commonly found in robotics, automotive, aerospace or machinery sectors. This female threaded assembly comes with a 5/16 inch right hand threads per inch (TP) external fitting secured by a 5/16 inch bore making it compatible with a wide variety of male connectors such as bolts, pins, shafts or studs. Its zinc-plated finish adds corrosion resistance while preventing scratches during operation. This product can be easily mounted and dismounted allowing hassle-free assembly and replacement within its applications ensuring long lasting service life without compromising performance.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 5/16"-24
- Stud Length 0.687 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension B 0.532 in
- Dimension C 0.687 in
- Dimension E 0.875 in
- Dimension G 1.375 in
- Dimension H 0.75 in
- Dimension J 1.813 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 2,740 lb
