Female Rod End RH 1/4 in Bore 1/4 -28 MPN:NFR4S
Female Rod End RH 1/4 in Bore 1/4 -28
Tap Set: 7/16-14, 3 Flute, Bottoming Plug & Taper, High Speed Steel, Oxide Finish is an essential tool for professional machinists or DIY enthusiasts who require precise thread cutting in their machining projects. It features a bottoming plug that ensures accurate alignment when threading and minimizes the chance of tap breakage. With its high-speed steel construction, this tap set can handle heavy-duty applications while the oxide finish provides corrosion resistance for long-lasting durability. Upgrade your machining operations with Tap Set: 7/16-14, 3 Flute, Bottoming Plug & Taper, High Speed Steel, Oxide Finish today!

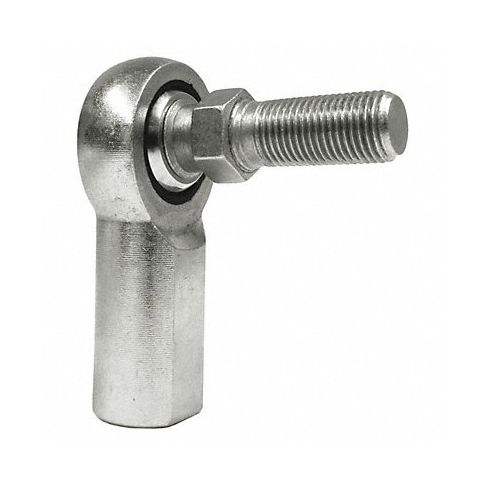

This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 1/4"-28
- Stud Length 0.562 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension B 0.469 in
- Dimension C 0.562 in
- Dimension E 0.75 in
- Dimension G 1.312 in
- Dimension H 0.75 in
- Dimension J 1.687 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 2,470 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFR4S
- MPN: NFR4S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Bearings
