Male Rod End LH 3/4 in Bore 3/4 -16 MPN:NML12
Male Rod End LH 3/4 in Bore 3/4 -16

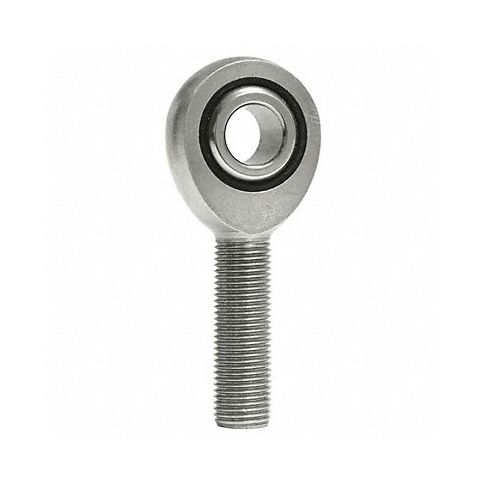

The Male Rod end with a left-hand thread features a bore of 3/4 diameter and has an overall length of approximately 3 inches. This high-quality product is made out of chrome-moly steel alloy which provides high strength and resistance to wear. It's suitable for use in multiple applications that involve rotational movements while offering a smooth, low friction motion making it ideal in various sectors such as robotics, automotive and construction machinery. The spherical design of the rod end offers unrestricted movement on all planes which helps eliminate binding resulting from angular misalignment making this an important piece in maintaining smooth movement in any project using spherical rods ends.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/4"-16
- Inside Dia. 0.750/0.752 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/4"-16
- Dimension AA 0.750/0.752 in
- Dimension E 1.75 in
- Dimension G 2.875 in
- Dimension H 1.75 in
- Dimension J 3.75 in
- Dimension N 0.875 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 10,900 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML12
- MPN: NML12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
