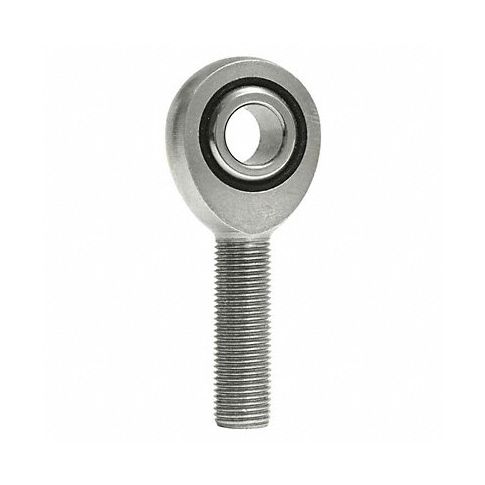

Male Rod End LH 5/8 in Bore 5/8 -18 MPN:NML10
Male Rod End LH 5/8 in Bore 5/8 -18
The high-strength steel construction of this male rod end ensures its suitability for heavy duty applications where durability is paramount, such as automotive and aerospace industries. Its M4 threaded hexagon socket head allows for convenient installation and removal, making it ideal for professional engineers and technicians working on precision movement control systems. The left-hand thread orientation further enhances the versatility of this rod end, allowing it to be used in diverse automation projects that demand strong attachment points. Its ability to withstand heavy loads and vibrations ensures precise control at all times, making it a valuable asset for industries where error is not an option.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/8"-18
- Inside Dia. 0.625/0.627 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/8"-18
- Dimension AA 0.625/0.627 in
- Dimension E 1.5 in
- Dimension G 2.625 in
- Dimension H 1.625 in
- Dimension J 3.375 in
- Dimension N 0.75 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 8,300 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML10
- MPN: NML10
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
