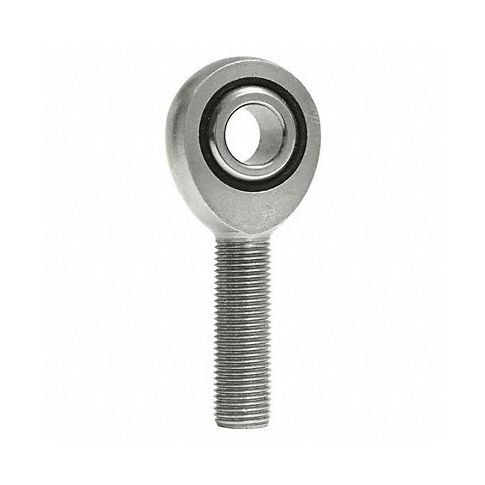

Male Rod End RH 5/8 in Bore 5/8 -18 MPN:NMR10
Male Rod End RH 5/8 in Bore 5/8 -18
The male rod end has a right-hand thread with a 5/8 bore diameter and is suitable for connecting components requiring smooth operation on a shaft. Its length of 1/2 makes it ideal for use in the automotive, aerospace, and machinery industries where precision movement is essential. This product's construction from alloy steel ensures durability even under extreme conditions. It can be used to attach various tools or equipment with threads of the same size range for easy handling during operation. With its ability to provide precise movements, this rod end is perfect for any application requiring high levels of precision and stability.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 5/8"-18
- Inside Dia. 0.625/0.627 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/8"-18
- Dimension AA 0.625/0.627 in
- Dimension E 1.5 in
- Dimension G 2.625 in
- Dimension H 1.625 in
- Dimension J 3.375 in
- Dimension N 0.75 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 8,300 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NMR10
- MPN: NMR10
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
