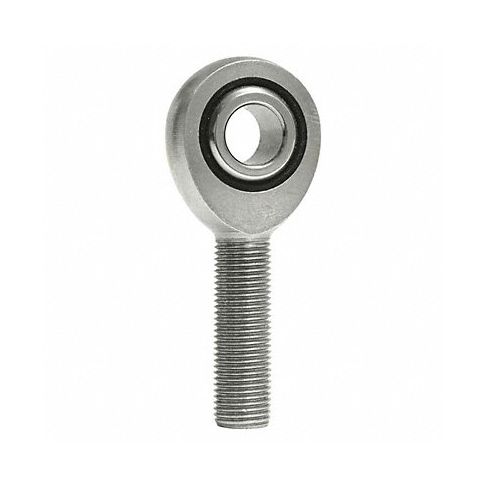

Male Rod End LH 7/16 in Bore 7/16 -20 MPN:NML7
The Male Rod End (Male Thread) is an essential component for quick fastening needs on machinery and equipment that utilizes threaded rods. Made with a left-hand Thread, it's capable of withstanding heavy load applications, thanks to its 7/16 inch size, 7/16 inch Bore dimension and Thread count of -20 providing superior durability that surpasses regular nuts or bolts. Crafted from premium metal alloy material making it resistant to rusting or wear-and-tear issues typically associated with traditional fastening alternatives, this male rod end delivers precision, reliability and versatility suitable for various industries such as aerospace, automotive or general manufacturing. With ease of use, quick attachment capability along with its ability to offer sturdy hold while maintaining alignment integrity; the Male Rod End LH 7/16 in Bore-20 is ideal for professional technicians or casual DIY enthusiasts tackling projects requiring utmost accuracy, strength and long-lasting performance.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 7/16"-20
- Inside Dia. 0.4375/0.4395 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension AA 0.4375/0.4395 in
- Dimension E 1.125 in
- Dimension G 2.125 in
- Dimension H 1.375 in
- Dimension J 2.688 in
- Dimension N 0.562 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 5,350 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML7
- MPN: NML7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
