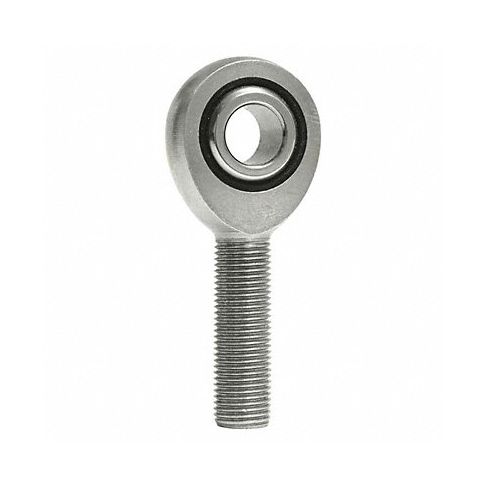

Male Rod End LH 5/16 in Bore 5/16 -24 MPN:NML5
Male Rod End LH 5/16 in Bore 5/16 -24
The Male Rod end LH with a 5/16 bore and thread size of 5/16-24 UNF is designed for heavy duty applications requiring strong materials that can handle high pressure, torque and reduce maintenance needs. With left-hand threads to prevent loosening due to vibrations, the rod end ensures stability and reliability in motion. The durable construction makes it ideal for use in industries such as machinery manufacturing, heavy equipment operations, and automotive mechanics seeking a stable connection for their equipment. Its robust design and longevity make it an ideal choice for those demanding precision and quality.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/16"-24
- Inside Dia. 0.3125/0.3145 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension AA 0.3125/0.3145 in
- Dimension E 0.875 in
- Dimension G 1.875 in
- Dimension H 1.25 in
- Dimension J 2.313 in
- Dimension N 0.437 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 2,740 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML5
- MPN: NML5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
