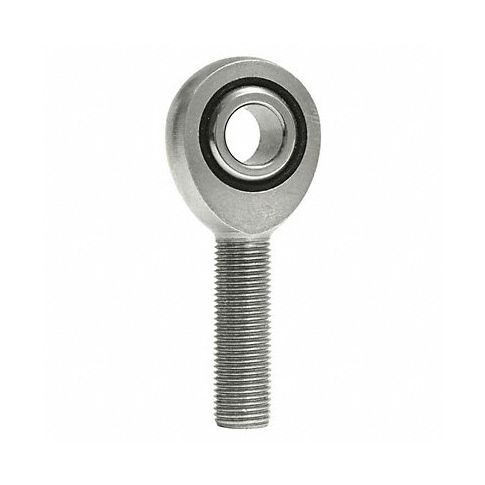

Male Rod End RH 1/4 in Bore 1/4 -28 MPN:NMR4
Male Rod End RH 1/4 in Bore 1/4 -28
The male rod end with right hand threaded thread form A (RTBTA) 1/4-inch bore size designed for spherical plain bearings made to accommodate axial movement while keeping a constant angular misalignment has a threaded stud or eye bolt fitting with external threads, making it suitable for applications demanding pivoting or rotating motions. Commonly used in aircraft suspension systems and automotive components this male rod end ensures smooth articulation without binding even under high stress, performing well within spherical rod ends categories requiring secure and stable attachment while allowing motion.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 1/4"-28
- Inside Dia. 0.250/0.252 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension AA 0.250/0.252 in
- Dimension E 0.75 in
- Dimension G 1.562 in
- Dimension H 1.0 in
- Dimension J 1.937 in
- Dimension N 0.375 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 2,470 lb
