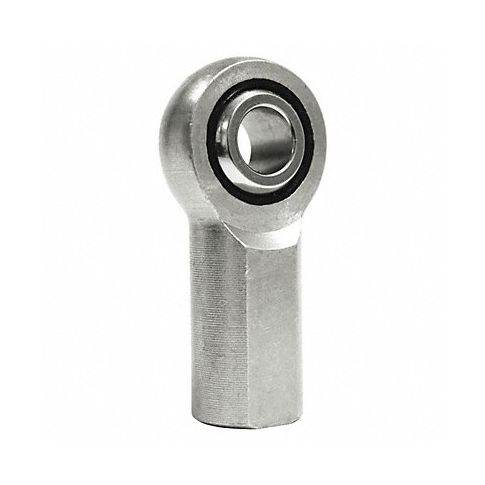

Female Rod End LH 5/16 in Bore 5/16 -24 MPN:NFL5
Female Rod End LH 5/16 in Bore 5/16 -24 is a premium-quality spherical rod end designed for heavy-duty operations in industries such as automotive or agricultural machinery manufacturing where the need to bear heavy load is constant. It offers durable construction boasting of its hard chrome plating providing resistance to corrosion & wear along with steel threads allowing high tensile strength making it perfect for use as a pivot joint in rotational movement systems requiring robust support. With its left-hand threaded design and interchangeable insert capability, this product delivers easy installation whilst ensuring accuracy and performance making it an optimal choice within spherical rod ends sector fulfilling multiple application criteria including industrial automation, robotics or heavy-duty machinery assembly tasks.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/16"-24
- Inside Dia. 0.3125/0.3145 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/16"-24
- Dimension AA 0.3125/0.3145 in
- Dimension E 0.875 in
- Dimension G 1.375 in
- Dimension H 0.75 in
- Dimension J 1.813 in
- Dimension N 0.437 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 2,740 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFL5
- MPN: NFL5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
