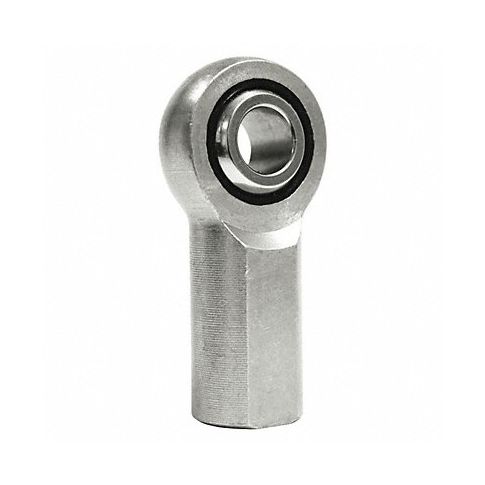

Female Rod End LH 1/4 in Bore 1/4 -28 MPN:NFL4
Female Rod End LH 1/4 in Bore 1/4 -28
Female Rod End LH 1/4 in Bore 1/4 -28 is a durable and versatile rod end bearing designed to provide precision alignment for mechanical components used in automotive, machinery, and aerospace industries. Its stainless steel or alloy steel construction ensures long-lasting use under extreme conditions while its right-hand threaded design securely attaches pistons to rods or control arms on suspension systems with a 1/4 inch bore diameter. Engineers, technicians, and machinists across various engineering fields who require precise alignment in their power transmission systems can benefit from the high-quality performance this female rod end bearing offers for optimal performance and safety.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 1/4"-28
- Inside Dia. 0.250/0.252 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension AA 0.250/0.252 in
- Dimension E 0.75 in
- Dimension G 1.312 in
- Dimension H 0.75 in
- Dimension J 1.687 in
- Dimension N 0.375 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 2,470 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFL4
- MPN: NFL4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:43am UTC
