Circuit Breaker 30A Bolt On 120V 1P MPN:UBIP130

Discount: See in Cart
Free Shipping
In Stock
Brand: Pushmatic
Part #: UBIP130
UPC: 00094925031027
SKU
226-CXO-6YEY3
$40.99
Add to Wish List Add to Compare

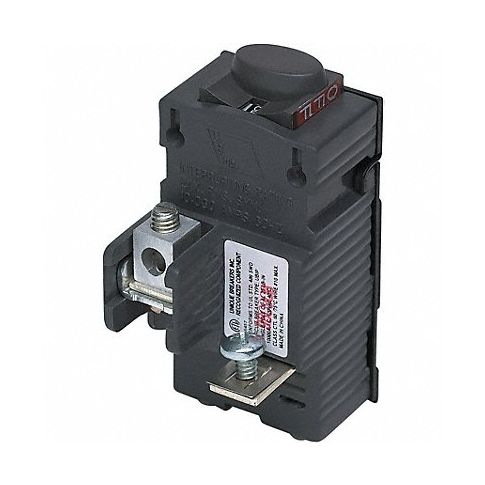

Circuit Breaker 30A Bolt On 120V 1P

The Circuit Breaker 30A Bolt On 120V 1P from Pushmatic is a perfect solution for protecting electrical circuits in various applications. This miniature circuit breaker can be easily bolted into place within Pushmatic load centers, instantly interrupting currents whenever faults are detected in the circuit. The bus bars allow for easy connection to the power supply and help organize the load center, making it a versatile option for any setting. With its 30 A rating and standard type design, this breaker offers reliable protection for multiple applications across diverse industries. Upgrade your electrical system safety with this durable, high-performing circuit breaker from Pushmatic today!

Top product features:

  • Bolt-on design for easy installation into Pushmatic load centers
  • Interrupts currents upon detecting faults in the circuit
  • Connects to power supply through bus bars, eliminating need for pigtail wires

Top product applications:

  • Protecting electrical circuits in various residential and commercial settings
  • Safeguarding electrical equipment and devices from overload or short-circuit damage
  • Providing reliable circuit protection for HVAC systems, lighting, and appliances
These miniature circuit breakers bolt into place in Pushmatic load centers. They interrupt currents when faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.

Technical Specifications

  • Item Miniature Circuit Breaker
  • Amps 30 A
  • AC Voltage Rating 120V AC
  • Circuit Breaker Type Standard
  • Number of Poles 1
  • DC Voltage Rating Not Rated
  • Circuit Breaker Actuator Toggle
  • Circuit Breaker Mounting Style Bolt On
  • Compatible Panelboard/Load Center Series L250-PL14
  • Phase Single
  • Series UBIP
  • Max. AIR Rating 10kA at 120V AC
  • For Use With Pushmatic Load Centers
  • Terminal Connection Lug
  • Frame Size 50A/SWD
  • Length 1.5 in
  • Width 1.81 in
  • Depth 2.9 in
  • Min. Operating Temp. 0 Degrees F
  • Max. Operating Temp. 250 Degrees F
  • Min. Wire Size 14 AWG
  • Max. Wire Size 4 AWG
  • Standards ETL Listed, UL Listed

Manufacturer Details

  • Manufacturer: Pushmatic
  • Condensed Mfg Number: UBIP130
  • MPN: UBIP130

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: CN
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8536200020
  • GDS Category Name: Miniature Circuit Breakers
  • GDS Family Name: Distribution
  • GDS Segment Name: Electrical
  • UNSPSC: 39121601
  • UNSPSC Class ID: 16
  • UNSPSC Commodity Name: Circuit protection devices and accessories
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Circuit breakers
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B000WUN5OG
