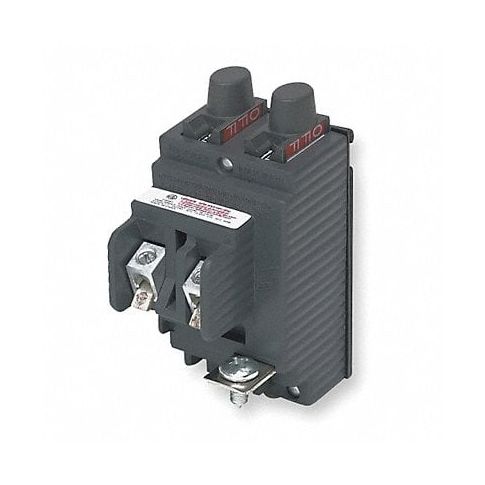

Circuit Breaker 20/20A Bolt On 120V 1P MPN:UBIP2020
Free Shipping
In Stock
Introducing our Circuit Breaker 20/20A Bolt On 120V 1P from Pushmatic - the ultimate protection for your electrical system! Designed to work seamlessly with our range of load centers, these circuit breakers feature an easy-to-use bolt-on design that makes installation a breeze. With a capacity of 20 amps and a voltage rating of 120V AC, they're perfect for residential and light commercial applications. Their tandem circuit breaker type ensures your electrical system is protected from overloads while also offering maximum convenience. And with just one pole, you can connect multiple loads with ease. So whether you're a homeowner or an electrician, invest in the peace of mind that comes with our Pushmatic Circuit Breaker 20/20A Bolt On 120V 1P - where safety and reliability meet style and convenience!
Top product features:
- Easy bolt-on installation in Pushmatic load centers
- 20/20 A capacity and 120V AC voltage rating for residential and light commercial applications
- Tandem circuit breaker type with one pole for simple connection of multiple loads
Top product applications:
- Protection for residential and light commercial electrical systems against overloads and short circuits
- Used in load centers to distribute power to various circuits in a home or building
- Installation in new constructions, remodels, or upgrading existing electrical systems
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20/20 A
- AC Voltage Rating 120V AC
- Circuit Breaker Type Tandem
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Push-to-Reset
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series L250-PL14
- Phase Single
- Series UBIP
- Max. AIR Rating 10kA at 120V AC
- For Use With Pushmatic and Bulldog Load Centers
- Terminal Connection Lug
- Frame Size 100A/HACR
- Length 1.84 in
- Width 1.5 in
- Depth 2.92 in
- Min. Operating Temp. 0 Degrees F
- Max. Operating Temp. 250 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards ETL Listed, UL Listed
Manufacturer Details
- Manufacturer: Pushmatic
- Condensed Mfg Number: UBIP2020
- MPN: UBIP2020
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 5:33pm UTC Category: Distribution
