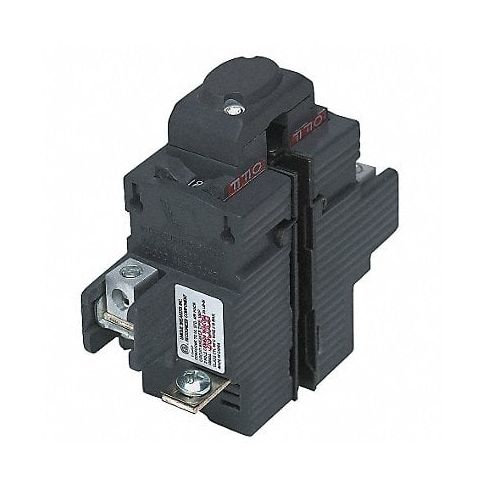

Circuit Breaker 100A Plug In 120/240V 2P MPN:UBIP2100
Free Shipping
In Stock
The Pushmatic Circuit Breaker 100A Plug In 120/240V 2P is an essential tool for any electrical circuit, providing reliable protection against electrical faults. This miniature circuit breaker fits seamlessly into Pushmatic load centers, preventing damage from excessive currents. The convenient plug-in design eliminates the need for time-consuming wire connections, and the two pole configuration ensures comprehensive circuit protection. Perfect for commercial or residential applications, this circuit breaker offers peace of mind with its ability to safely disconnect electrical loads in case of overload, short circuits, or ground faults. Upgrade your electrical system with Pushmatic's Circuit Breaker 100A Plug In 120/240V 2P for superior protection and efficiency.
Top product features:
- Compatibility with Pushmatic load centers
- Easy installation plug-in design
- Bus bars for organized power supply
Top product applications:
- Commercial and industrial electrical systems
- Residential electrical circuits
- Temporary power distribution for events or construction sites
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Push-to-Reset
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series L250-PL14
- Phase Single
- Series UBIP
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Pushmatic and Bulldog Load Centers
- Terminal Connection Lug
- Frame Size 100A/HACR
- Length 3.81 in
- Width 1.5 in
- Depth 3.53 in
- Min. Operating Temp. 0 Degrees F
- Max. Operating Temp. 250 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 4 AWG
- Standards ETL Listed, UL Listed
Manufacturer Details
- Manufacturer: Pushmatic
- Condensed Mfg Number: UBIP2100
- MPN: UBIP2100
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 25, 2023 10:33am UTC Category: Distribution
