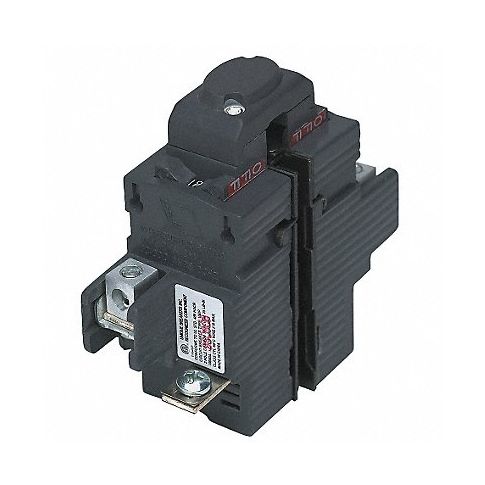

Circuit Breaker 50A Bolt On 120/240V 2P MPN:UBIP250
Free Shipping
In Stock
Introducing the Pushmatic Circuit Breaker 50A Bolt On 120/240V 2P - your one-stop solution for safe and reliable power management in your home or commercial space. Designed to bolt securely into Pushmatic load centers, these miniature circuit breakers protect your electrical circuits by interrupting currents when faults are detected. With the use of bus bars, there's no need for pigtail wires, making installation easy, safe, and organized. Equipped with a sturdy 50 A capacity, this product is ideal for managing high power loads, making it perfect for heaters, air conditioners, electric cooktops, and other heavy-duty appliances. Its versatile 120/240V AC voltage rating makes it suitable for a wide range of applications, while its standard circuit breaker type ensures compatibility with most electrical setups. Invest in the Pushmatic Circuit Breaker 50A Bolt On 120/240V 2P and safeguard your property from potential electrical hazards!
Top product features:
- Bolts securely into Pushmatic load centers
- Interrupts currents when faults are detected
- Connects to power supply through bus bars
Top product applications:
- Protection against power surges and short circuits in homes and commercial spaces
- Safe operation of heavy-duty appliances like electric cooktops, heaters, or air conditioners
- Distribution of power to multiple electrical devices or outlets in load centers
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Push-to-Reset
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series L250-PL14
- Phase Single
- Series UBIP
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Pushmatic and Bulldog Load Centers
- Terminal Connection Lug
- Frame Size 100A/HACR
- Length 3.81 in
- Width 1.5 in
- Depth 3.53 in
- Min. Operating Temp. 0 Degrees F
- Max. Operating Temp. 250 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 3 AWG
- Standards ETL Listed, UL Listed
Manufacturer Details
- Manufacturer: Pushmatic
- Condensed Mfg Number: UBIP250
- MPN: UBIP250
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
