Circuit Breaker 40A Bolt On 120/240V 2P MPN:UBIP240

Discount: See in Cart
Free Shipping
In Stock
Brand: Pushmatic
Part #: UBIP240
UPC: 00094925031065
SKU
226-CXO-3YMT3

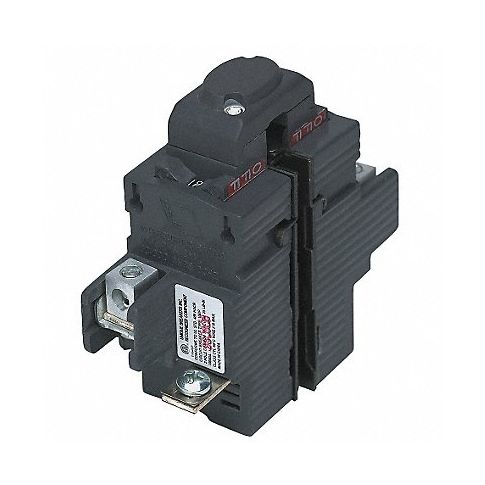

Circuit Breaker 40A Bolt On 120/240V 2P

Introducing the Pushmatic Circuit Breaker 40A Bolt On 120/240V 2P - perfect for any residential or commercial load center that requires efficient and reliable circuit protection. This miniature circuit breaker features a durable design that bolts into place, eliminating the need for messy pigtail wires and allowing for easy installation in your existing Pushmatic load center. With an amperage rating of 40A and AC voltage ratings of 120/240V, this breaker is ideal for handling various electrical applications, while its standard circuit breaker type ensures reliable circuit protection. Its two poles make it perfect for managing dual circuits in one convenient location, providing enhanced organization and safety for your electrical system. With the Pushmatic Circuit Breaker 40A Bolt On 120/240V 2P, you can enjoy peace of mind knowing that your electrical system is safe, secure, and up to code.

Top product features:

  • Bolt-on design for easy installation
  • AC voltage rating of 120/240V for versatility
  • Two poles for managing dual circuits

Top product applications:

  • Residential electrical systems for overload protection
  • Commercial electrical systems for fault protection
  • RVs and boat batteries to protect from surges
These miniature circuit breakers bolt into place in Pushmatic load centers. They interrupt currents when faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.

Technical Specifications

  • Item Miniature Circuit Breaker
  • Amps 40 A
  • AC Voltage Rating 120/240V AC
  • Circuit Breaker Type Standard
  • Number of Poles 2
  • DC Voltage Rating Not Rated
  • Circuit Breaker Actuator Push-to-Reset
  • Circuit Breaker Mounting Style Bolt On
  • Compatible Panelboard/Load Center Series L250-PL14
  • Phase Single
  • Series UBIP
  • Max. AIR Rating 10kA at 120/240V AC
  • For Use With Pushmatic and Bulldog Load Centers
  • Terminal Connection Lug
  • Frame Size 100A/HACR
  • Length 3.81 in
  • Width 1.5 in
  • Depth 3.53 in
  • Min. Operating Temp. 0 Degrees F
  • Max. Operating Temp. 250 Degrees F
  • Min. Wire Size 14 AWG
  • Max. Wire Size 3 AWG
  • Standards ETL Listed, UL Listed

Manufacturer Details

  • Manufacturer: Pushmatic
  • Condensed Mfg Number: UBIP240
  • MPN: UBIP240

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: CN
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8536200020
  • GDS Category Name: Miniature Circuit Breakers
  • GDS Family Name: Distribution
  • GDS Segment Name: Electrical
  • UNSPSC: 39121601
  • UNSPSC Class ID: 16
  • UNSPSC Commodity Name: Circuit protection devices and accessories
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Circuit breakers
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
