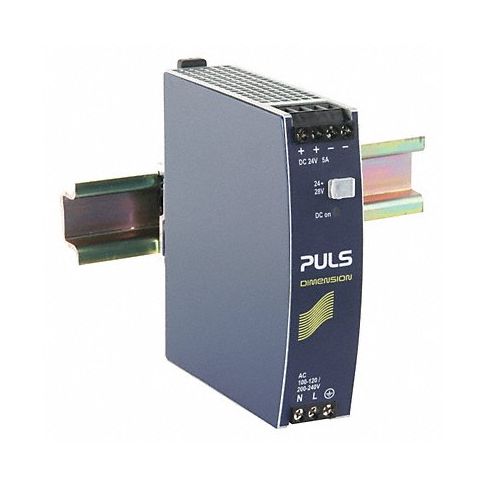

DC Power Supply Metal 24 to 28VDC 120W MPN:CS5.241

C-Series power supplies are highly reliable in compact metal housings with a power range from 80 to 480W. Additional features include high efficiency, long life, 20% current reserves, extremely low AC inrush, screw terminals, Class I, Div. 2 approval and a temperature range of -25° to 70°C.

Technical Specifications

• Item DC Power Supply
• Input Voltage 100 to 120V AC, 200 to 240V AC
• Output Voltage 24 to 28V DC
• Power Rating 120W
• Output Amps 5.0
• Mounting DIN Rail
• Style Switching
• Case Material Metal Case
• Height 124 mm
• Width 32 mm
• Depth 117 mm
• Series Dimension
• Hz 50/60
• Phase - Electrical 1
• Peak Amps 6
• IP Rating 20
• Output Noise 50mV
• Hold Up Time 80 msec
• Status Indicator LED
• Features High Efficiency and Long Lifetime
• Operating Temp. Range -25 Degrees to 70 Degrees C
• Standards cUL us, cRU us, Class I Division 2, CE, ROHS

Manufacturer Details

• Manufacturer: Puls
• Condensed Mfg Number: CS5241
• MPN: CS5.241

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8504406007
• GDS Category Name: DC Power Supplies
• GDS Family Name: Power Supplies
• GDS Segment Name: Electrical
• UNSPSC: 39121004
• UNSPSC Class ID: 10
• UNSPSC Commodity Name: Power conditioning equipment
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Power supply units
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
