NELSON 14-gauge Stud Welder MPN:CD-212P

Discount: See in Cart
Free Shipping
In Stock
Brand: Pro Weld
Part #: CD-212P
SKU
226-CXO-36TP30
$6,194.29

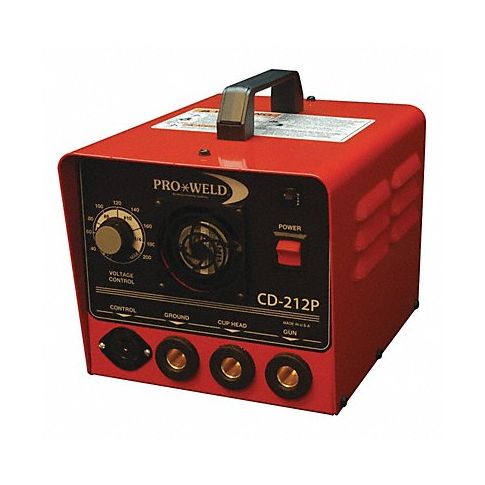

NELSON 14-gauge Stud Welder

Introducing Nelson 14-gauge Stud Welder from Pro Weld - the perfect solution for welding studs to aluminum, mild, and stainless steel surfaces. With its innovative design, this pin welder allows you to join materials as thin as 0.015 without any burning or damage. Its insulation and cupped head pins ensure superior performance and ease of use. Say goodbye to traditional welding methods that require expensive equipment, and say hello to the power and versatility of Nelson 14-gauge Stud Welder from Pro Weld. Ideal for automotive repair shops, construction sites, and manufacturing plants, this stud welder offers a wide range of applications including welding sheet metal, body panels, and structural components. Boasting an impressive input voltage of 110V AC, 60 HZ, 20A, fusing capacity of 20A, capacitance of 66,000 MFD, and stud range from 14 ga - 1/4 in, Nelson 14-gauge Stud Welder is the ultimate tool for all your welding needs.

Top product features:

  • Low input voltage of 110V AC, 60 HZ, 20A.
  • Fusing capacity of 20A for safe usage.
  • Capacitance of 66,000 MFD ensures superior performance.

Top product applications:

  • Automotive repair shops can use it to join body panels and structural components.
  • Construction sites can use it to attach sheet metal and other materials together.
  • Manufacturing plants can use it to assemble and secure structural elements in the production process.
Allows studs to be welded to aluminum, mild and stainless steel as thin as 0.015 without burning. Features insulation and cupped head pins.

Technical Specifications

  • Item Pin Welder
  • Input Voltage 110V AC, 60 HZ, 20A
  • Fusing 20A
  • Capacitance 66,000 MFD
  • Stud Range 14 ga - 1/4 in
  • Duty Cycle 1/4 in 12/min
  • Output Range 45-195
  • Features Light Weight Solid State Capacitor Discharge Stud Welder, Capable of Welding Up to 1/4 in Diameter Studs, Insulation and Cupped Head Pins, Welds to Material As Thin As 0.015 Without Burn Through, Welds Mild Steel, Stainless, and Aluminum, Made In The Usa
  • Height 8.5 in
  • Width 9 in
  • Length 11 3/4 in
  • Includes Ground Cable; Collet and Stop Pin Sold Separately, Power Control Unit, Weld Gun

Manufacturer Details

  • Manufacturer: Pro Weld
  • Condensed Mfg Number: CD212P
  • MPN: CD-212P

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8515800080
  • GDS Category Name: Stud Welders
  • GDS Family Name: Stud Welding And Accessories
  • GDS Segment Name: Welding
  • UNSPSC: 23171508
  • UNSPSC Class ID: 15
  • UNSPSC Commodity Name: Soldering and brazing and welding machinery and supplies
  • UNSPSC Commodity ID: 08
  • UNSPSC Commodity Name: Welders
  • UNSPSC Family ID: 17
  • UNSPSC Family Name: Workshop machinery and equipment and supplies
  • UNSPSC Segment ID: 23
  • UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B07V2ZM227, B007PBA2O6, B0BN59PD1C
